Adjusting Mower Deck Wheels

1. IMPORTANT: The mower deck can be damaged if mower wheels are adjusted wrong:

   • Wheels must not ride on ground supporting mower weight.
   • Check wheel adjustment each time cutting height is changed.



   Park machine safely. (See Parking Safely in the SAFETY section.)

2. Inflate tires to the correct pressure.

3. Lower mower deck to the desired mowing position.

4. NOTE: Bottom of wheels should be approximately 3-13 mm (1/8-1/2 in.) from the ground.


   GXAL41988-UN-04MAR13

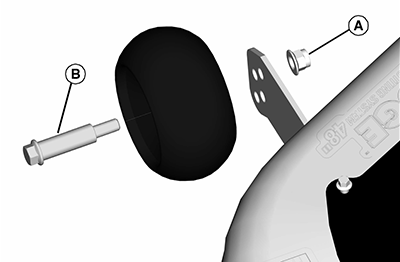

   Check each mower wheel position. Remove nut (A) and bolt (B), and move mower wheel to proper hole.

---




5.
   GXAL41989-UN-04MAR13

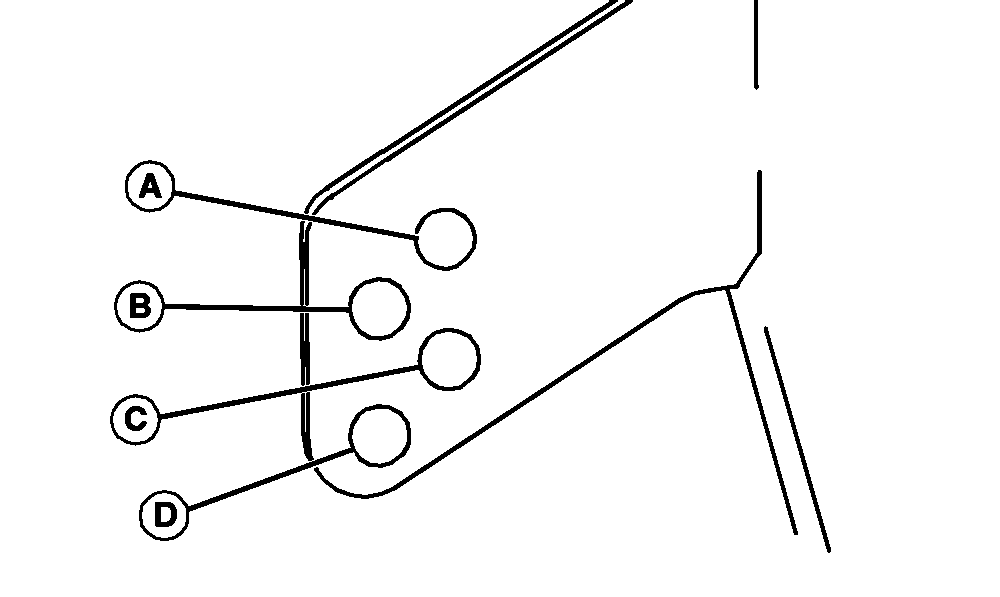

   A - 38 mm (1.5-In.)

   B - 51 mm (2-In.)

   C - 64 mm (2.5-In.)

   D - 76 mm (3-In.) and above

   Install bolts and nuts to lock wheels in position. Tighten nuts to specifications.

   Item	Measurement	Specification
   Mower Deck Wheel Nut	Torque	25 lb-ft (34 N·m)

---
