Using Travel Controls on Hydrostatic Transmission

CAUTION: Children or bystanders may be injured by runover and rotating blades. Before traveling forward or rearward:

• Carefully check the area around the machine.
• Disengage the mower before backing up.

Travel Forward

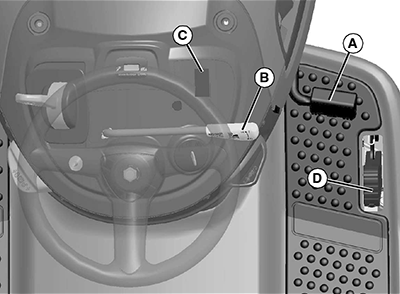

GXAL41995-UN-04MAR13

• Push down the forward travel pedal (A).

Travel in Reverse

NOTE: Any operating attachment and the engine will stop as the reverse motion pedal is pressed with attachment engaged.

1. Disengage attachment:

   • On models with mechanical attachment engagement lever (B), pull lever back to the off position.
   • On models with electric attachment engagement switch, push switch in location (C) (not shown above) down to the off position.



2. Look behind the machine to be sure there are no bystanders nearby.

3. Touch the reverse travel pedal (D) with front of foot and slide foot over pedal from front to rear.

Emergency Stopping

• Push brake pedal all the way down to stop machine.
