Adjusting Mower Belt Tension (107 cm (42 in.) Mower Deck)

  1. Park machine safely. (See Parking Safely in the SAFETY section.)

  2. Move mower engagement (PTO) lever or switch to OFF position.

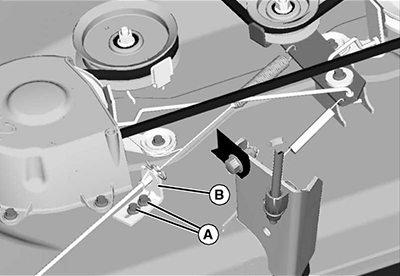

  3. GXAL42036
    GXAL42036-UN-04MAR13

    Loosen nuts (A) and move cable bracket (B) away from the center of mower deck to tighten belt tension. Move bracket until almost all slack is out of cable but cable is not too tight. Tighten nuts.
