Removing and Installing Hood


Removing

CAUTION: Touching hot surfaces can burn skin. The engine, components, and fluids will be hot if the engine has been running. Allow the engine to cool before servicing or working near the engine and components.

IMPORTANT: Do not operate machine with hood open. Hood must be closed for proper engine cooling and exhaust.

  1. Park machine safely. (See Parking Safely in the SAFETY section.)

  2. Let engine cool.

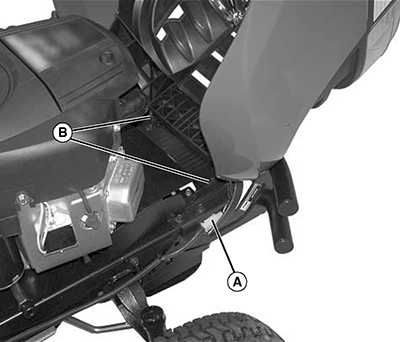

  3. PY19053
    PY19053-UN-07AUG13

    Open hood.


  4. Disconnect wiring harness (A).

  5. Apply pressure to “John” on left side of hood and slowly lower hood. Left side pivot should release after rotating closed approximately 45 degrees. Once left side pivot releases, slide out right side pivot. Lower hood slightly and lift hood from brackets (B).


Installing

  1. Slide right side hood pivot into tractor bracket with hood in open position (left side pivot will slide into place as hood closes) and slowly close hood.

  2. Connect wiring harness.

  3. Close hood.

OUO1023,00001E3-19-20130809
