Cleanout Areas

Primary areas that must be inspected and cleaned on the machine include (See Safety Label Section):

1.

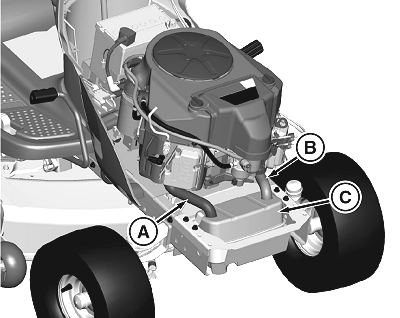

   GXT001360-UN-06MAY14

   .

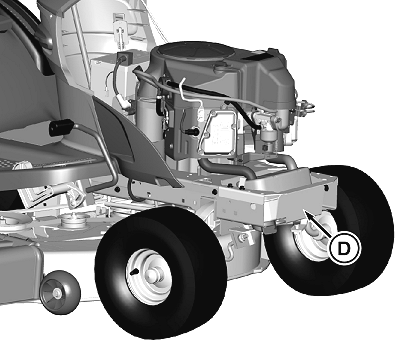

   GXT001361-UN-01MAY14

   Exhaust manifolds/muffler pipes (A, B), muffler (C) and muffler shield (D).

---




2.

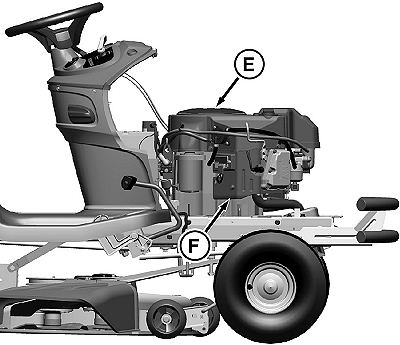

   GXT001362-UN-01MAY14

   Engine intake screens (E) and cooling fins (F).

---




3.

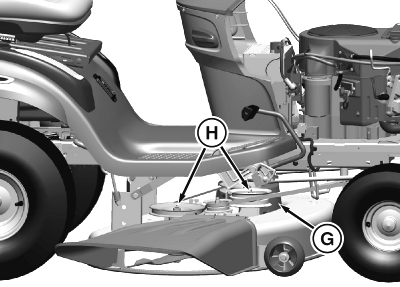

   GXT001363-UN-01MAY14

   Top of mower deck, under shields (G), including spindle (H) and belt areas.

---




4.

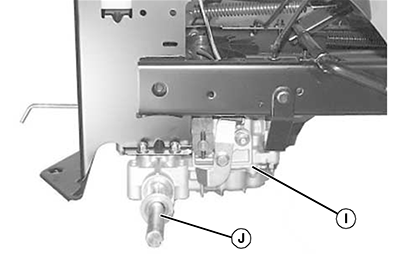

   GXAL41972-UN-04MAR13

   Shown with wheel removed

   On or near transmission (I) and driveline (J).

---




5.

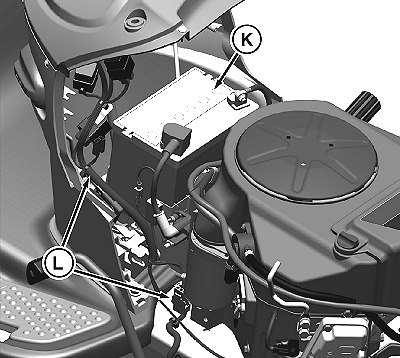

   GXT001364-UN-01MAY14

   Under left side panel near fuse block and all wiring, including the battery (K) and related wiring harnesses (L).

---
