Install Front Mounting Bracket


48HC, 54HC (ZTrak)

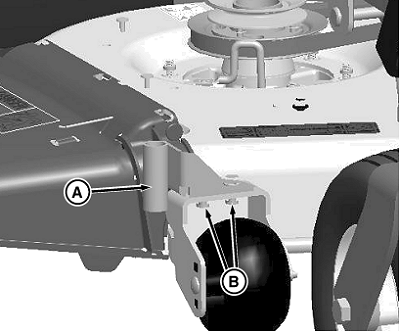

GXT002372
GXT002372-UN-01JUL15

1. Install front mounting bracket (A) on mower deck right front gage wheel bracket with two M8x25 bolts (B) and M8 locknuts. Tighten to 20—40 N·m (15—29 lb·ft).


54HC (X700)

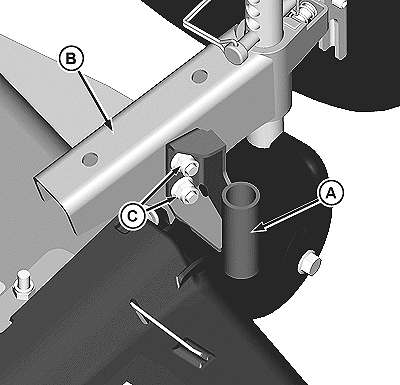

GXT002465
GXT002465-UN-27AUG15

1. Install front mounting bracket (A) onto front gage wheel bracket (B) with two M8x20 carriage bolts and M8 flange locknuts (C). Tighten to 20—40 N·m (15—29 lb·ft).


48A, 54A (ZTrak)

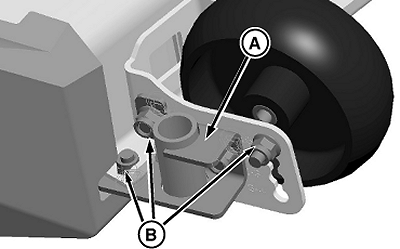

GXT002373
GXT002373-UN-01JUL15

1. Install bracket assembly (A) to gage wheel bracket with three M6 carriage bolts and locknuts (B) as shown. Tighten to 10—18 N·m (7—13 lb·ft).


48A, 54A (Select Series), and 48A (X700)

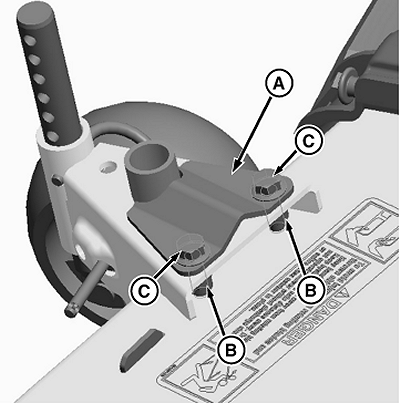

  1. GXT002374
    GXT002374-UN-01JUL15

    Place mount bracket (A) on top of gage wheel bracket.


  2. Insert each nut (B) under gage wheel bracket, holding with wrench from spinning.

  3. Thread M8 bolt (C) into nut from top. Start both bolts before tightening hardware.

  4. Tighten nuts to 20—40 N·m (15—29 lb·ft).

OUMX068,0000CA6-19-20150827
