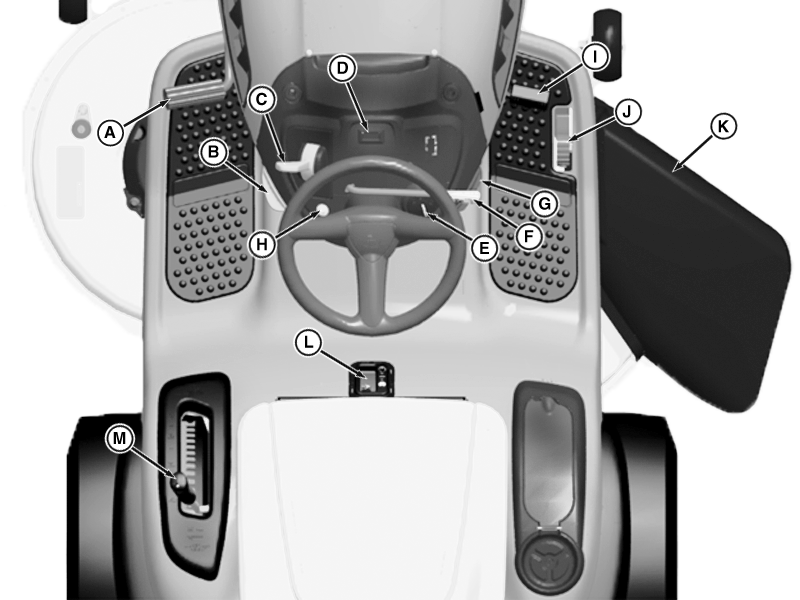

Operator Station Controls (D110, D125, D130)

PY19030-UN-07AUG13

A - Brake Pedal

B - Park Brake Lock Lever

C - Throttle/Choke Lever

D - Service Reminder/Hourmeter

E - Key Switch

F - Attachment Engagement Lever

G - Cruise Control Lever (D125 and D130)

H - Reverse Implement Option (RIO) Switch

I - Forward Travel Pedal

J - Reverse Travel Pedal

K - Deflector Shield

L - Fuel Level Window

M - Attachment Lift Lever
