Cleanout Areas

Primary areas that must be inspected and cleaned on the machine include (See Safety Label Section):

1.
   PY19177-UN-28JAN14


   PY19178-UN-23JAN14

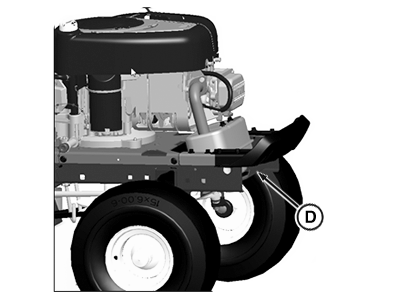

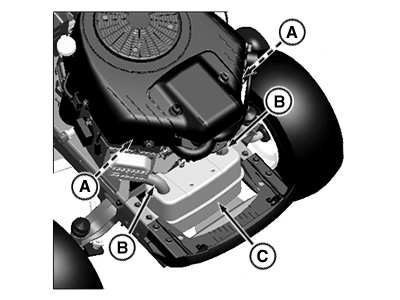

   Exhaust manifold (A), muffler pipe (B), muffler (C) and muffler shield (D).

---




2.
   PY19179-UN-23JAN14

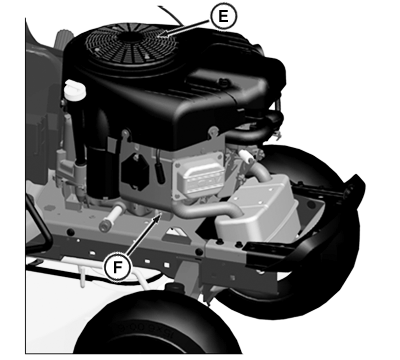

   Engine intake screens (E), cooling fins (F), and oil cooler (if equipped).

---




3.
   PY20094-UN-11JUL14

   Left Side Shown


   PY20096-UN-13AUG14

   Right Side Shown


   PY20097-UN-11JUL14

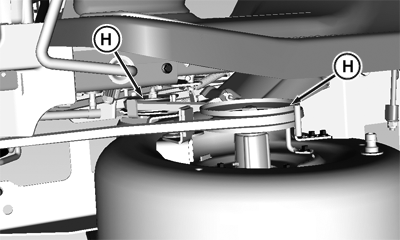

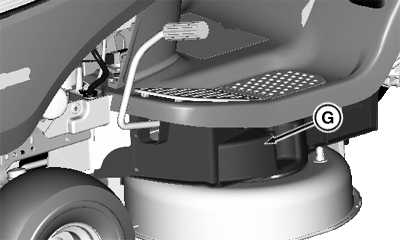

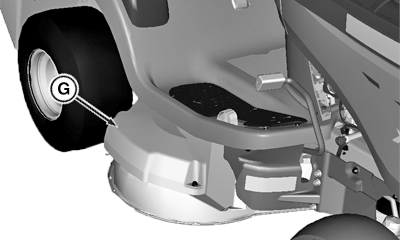

   Top of mower deck, under shields (G), including spindle (H) and belt areas.

---




4.
   PY20098-UN-11JUL14

   Shown with wheel removed

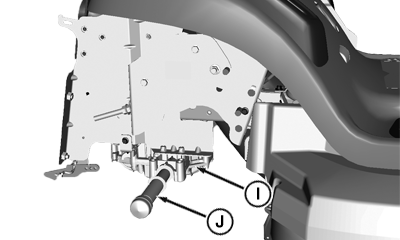

   On or near transmission (I) and driveline (J).

---




5.
   GXAL42075-UN-04MAR13

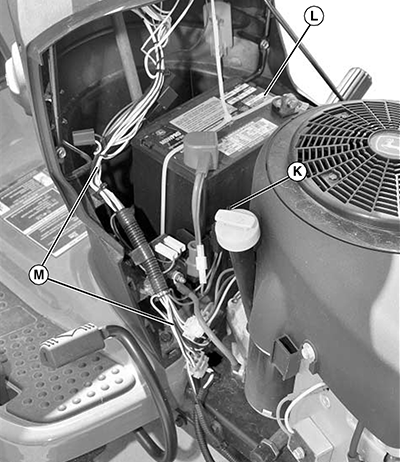

   Under left side panel near fuse block (K), and all wiring, including the battery (L) and related wiring harnesses (M).

---
