Lubricating Pivot Points

  1. Put attachment lift lever in lowest position.

  2. Remove right and left deck shields. (See Removing and Installing Machine Shields in the SERVICE MOWER section.)

  3. GXAL42117
    GXAL42117-UN-04MAR13

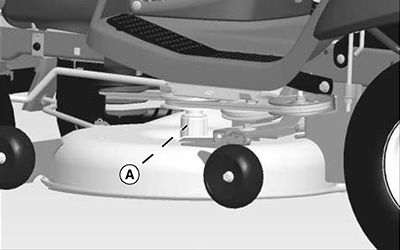

    Use flexible grease gun hose and lubricate left mower spindle grease fitting (A) with two pumps of grease at specified interval. Repeat on right spindle.


  4. Install right and left deck shields.

MX00654,00003E8-19-20130626
