Record Identification Numbers

Lawn Tractors

D105, D110, D125, D130, D140, D160, D170

Model	PIN: 49 State Australia	PIN: California	PIN: Canada Mexico ROW
D105	E540001—		E205001—
D110	E532001—	E053001—	E205001—
D125	E513001—	E052001—	E204001—
D130	E052201—	E053001—	E204001—
D140	E527001—	E053001—	E205001—
D160	E503001—	E052001—	E204001—
D170	E511001—	E053001—	E204001—

If you need to contact an Authorized Service Center for information on servicing, always provide the product model and identification numbers.

You will need to locate the product identification number (PIN) for the machine and engine serial number. Record the information in the spaces provided below.

DATE OF PURCHASE:

_________________________________________

DEALER NAME:

_________________________________________

DEALER PHONE:

_________________________________________

PRODUCT IDENTIFICATION NUMBER:

__ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __

ENGINE SERIAL NUMBER:

__ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __

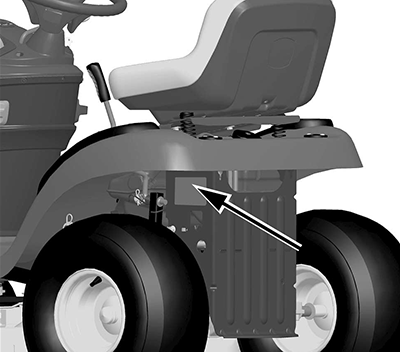

Machine Product Identification Number Location

GXAL41941-UN-04MAR13

Located on left side of frame

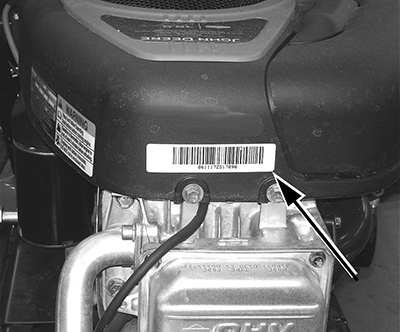

Engine Serial Number Location

GXAL41942-UN-04MAR13

Single cylinder engines

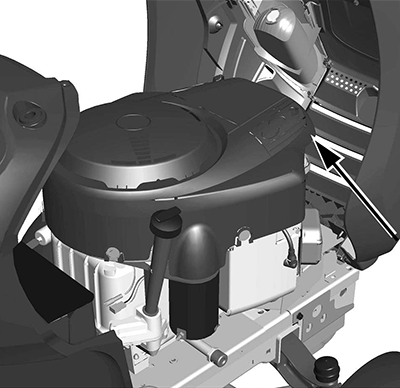

GXAL41943-UN-04MAR13

V-Twin engines
