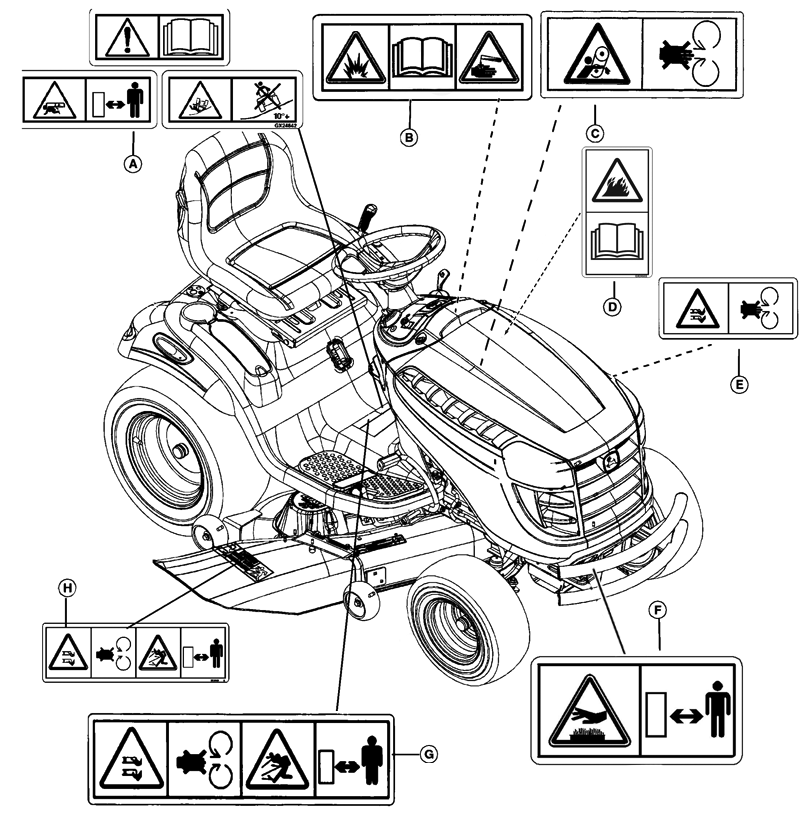

Safety Label Location (No Text)

PY20029-UN-18FEB14

Non-text labels are required for certain regions of the world. Your machine may not be equipped with these labels. Use label number listed in table below to locate complete text of safety label message following this illustration.

A - Read Operators Manual; Keep Children Away from Mower; Avoid Injury From Tipping - GX24842

B - Avoid Injury From Battery Gases and Acid - M128484

C - Avoid Injury From Getting Caught in Belt - M136436

D - Prevent Equipment Fires - GX24503

E - Avoid Injury From Rotating Blades - M118041

F - Avoid Injury From Hot Surfaces - GX25568

G - Avoid Injury From Rotating Blades and Thrown Objects - M148522

H - Avoid Injury From Rotating Blades and Thrown Objects - M118040
