Adjusting Seat

  1. Sit in seat.

  2. PY24044
    PY24044-UN-19MAY15

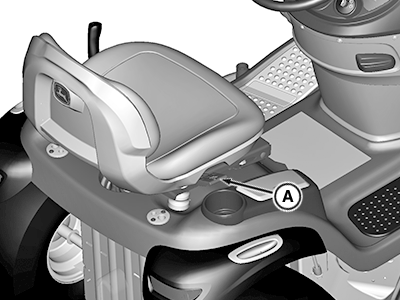

    Lift up on adjustment lever (A) on right side of seat.


  3. Lean forward and slide seat forward or rearward to desired position. Do not lean back on top of seat to push rearward.

  4. Release seat adjustment lever to lock in position.

RM87422,000025D-19-20150519
