Lubricating Front Axle

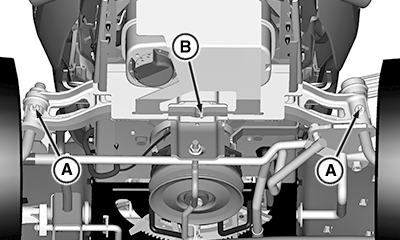

PY24050-UN-19MAY15

Wheel Spindles

• Lubricate front wheel spindle grease fittings (A) with one or two shots of recommended grease.

Front Axle Pivot

• Lubricate front axle center pivot grease fitting (B) with one or two shots of recommended grease.
