Lifting Machine

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. CAUTION: Avoid injury! The machine can fall or slip from an unsafe lifting device or supports.

   • Use a safe lifting device rated for the load to be lifted.
   • Lower machine onto jack stands or other stable supports and block wheels before servicing.




   GXAL42048-UN-04MAR13

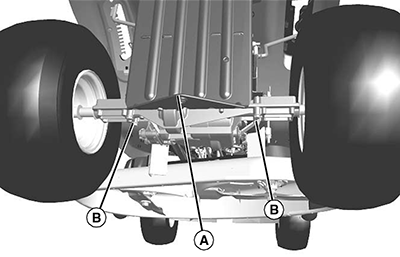

   Safely lift rear of machine at machine frame point (A). Place jack stands or other stable supports onto transmission locations (B) where mounting bolts for frame come through.

---




3. If only lifting rear of machine, block front wheels remaining on ground to avoid movement of machine.

4.
   PY24055-UN-21MAY15

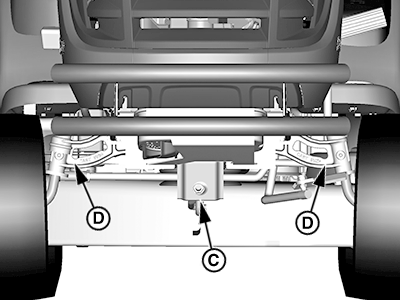

   Safely lift front of machine at machine frame point (C). Place jack stands or other stable supports under frame on each side at location (D).

---




5. If only lifting front of machine, block rear wheels remaining on ground to avoid movement of machine.

6. To lower machine, lift front and/or rear of machine, and remove jack stands or supports. Lower machine.
