Using the Hourmeter and Service Reminder

PY24082-UN-02JUN15

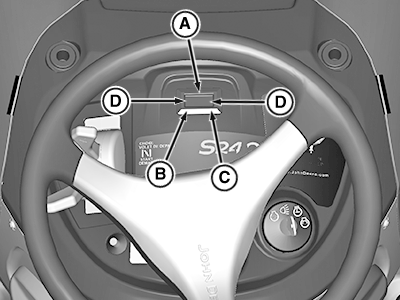

• The hourmeter (A) shows the number of hours the engine has run. The service reminder will indicate that a general lubrication (B) or mower/engine (C) service interval has been reached. When service is required, the service “SVC” arrows (D) will periodically flash for two hours. Follow the service timetable on the maintenance schedule located under the seat. For specific service procedures, see the Service section of this manual.
• Hourmeter cannot be reset.
• The hourmeter display will always be on.
• The decimal point will flash while the hourmeter is accumulating time.
