Cleanout Areas

Primary areas that must be inspected and cleaned on the machine include (See Safety Label Section):

1.
   PY24568-UN-15JUL15

   .


   PY24569-UN-15JUL15

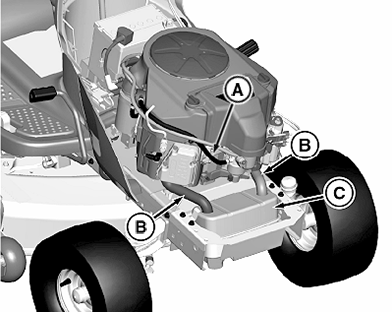

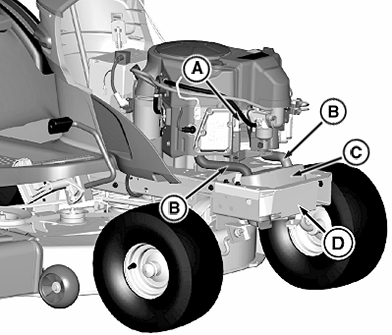

   Exhaust manifolds/muffler pipes (A, B), muffler (C) and muffler shield (D).

---




2.
   GXT001362-UN-01MAY14

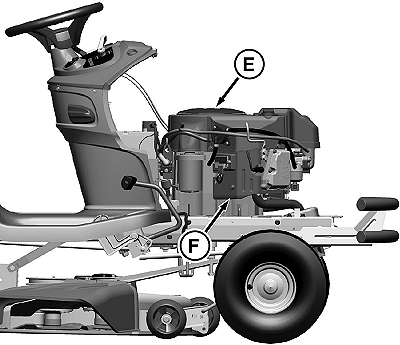

   Engine intake screens (E) and cooling fins (F).

---




3.
   GXT001363-UN-01MAY14

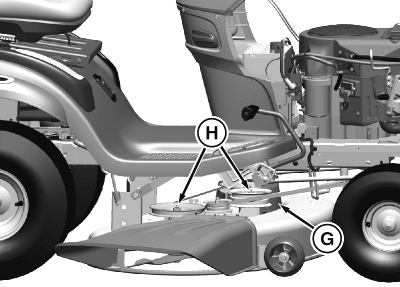

   Top of mower deck, under shields (G), including spindle (H) and belt areas.

---




4.
   GXAL41972-UN-04MAR13

   Shown with wheel removed

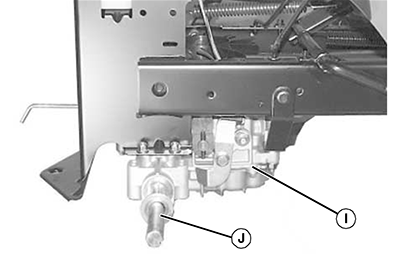

   On or near transmission (I) and driveline (J).

---




5.
   PY24567-UN-03JUL15

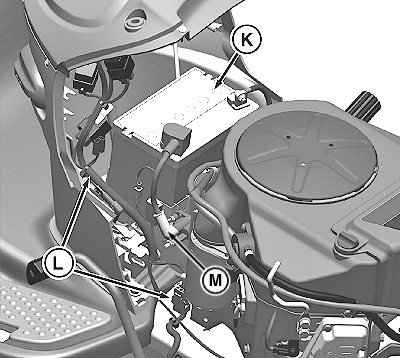

   Under left side panel near fuse block (M) and all wiring, including the battery (K) and related wiring harnesses (L).

---
