Replacing Fuse

  1. Park machine safely. (See Parking Safely in the SAFETY section.)

  2. Lift hood.

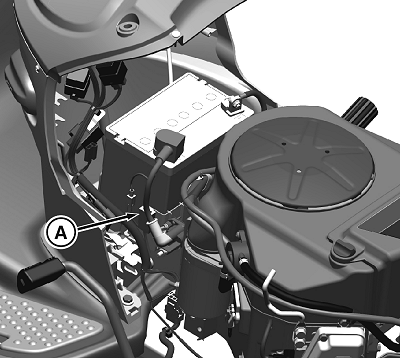

  3. GXT001387
    GXT001387-UN-01MAY14

    Pull defective fuse (A) out of socket.


  4. Check metal clip in fuse window and discard fuse if clip is broken.

  5. Push new 20 amp fuse into socket.

  6. Lower hood.

TH84124,00000ED-19-20140505
