Replacing Mower Drive Belt

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Remove mower deck.

3.

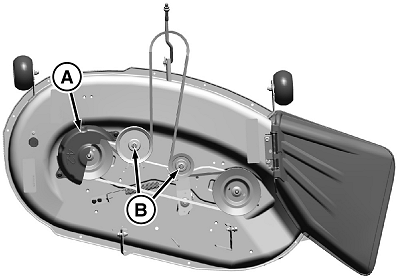

   GXT001385-UN-01MAY14

   Remove drive belt:

   1. Remove two capscrews and belt shield (A).

   2. Loosen sheaves (B).

   3. Remove mower belt.

---




4. Inspect belt for wear or damage; replace as necessary.

5. Clean top surface of mower deck and sheaves.

6. Install belt on mower deck as shown. Make sure belt is in the groove of each sheave.

7. Tighten sheaves to specifications.

   Item	Measurement	Specification
   Mower Deck Idler Sheave Nuts	Torque	47 N·m (35 lb.-ft.)

8. Install belt shield.

9. Install mower deck.
