Lubricating Pivot Points

Mower Deck:

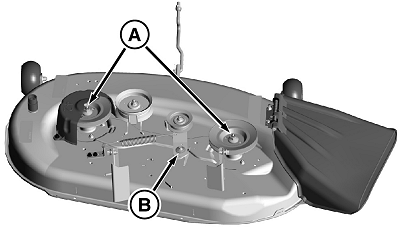

GXT001378-UN-01MAY14

A - Spindle Grease Fitting (2)

B - Deck Idler Pivot

• Lubricate the two spindle grease fittings (A) with one or two shots of general purpose grease.
• Lubricate the deck idler pivot (B) with a general all-purpose spray lubricant.
