Adjusting Grass Collector Full Sensor

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2.
   PY20715-UN-11JUL14

   Use two handles (A) to raise hopper assembly (B) onto back portion of support arms, and leave hopper assembly open at an approximate 20° angle (C).

   NOTE: There are seven sensitivity settings for adjusting the hopper fill switch.

---




3. NOTE: There are detent settings for each position, so each position will seat into place as you are moving lever.

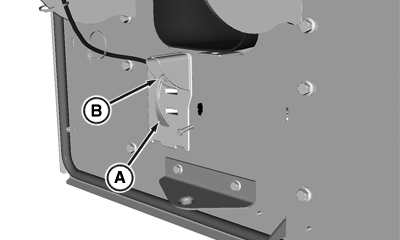

   PY20716-UN-11JUL14

   Position 1 shown

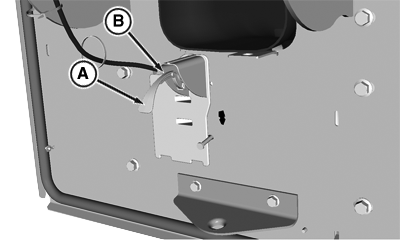

   PY20717-UN-11JUL14

   Position 7 shown

   Grasp lever (A) at top of lever (B) and rotate lever fully down to position 1 or fully upward into position 7:
   • Place hopper fill switch lever into position 1 when grass is very green and thick or when grass is wet. If the chute plugs, move the lever to a higher setting.
   • Place hopper fill switch lever in position 7 when grass is brown and sparse or when grass is very dry. If hopper does not fill completely, move the lever to a lower setting.



---

When properly adjusted, the alarm will sound and the indicator light will illuminate when the collector is filled to an optimal level and the discharge chute does not clog.
