Removing Grass Collector

1. CAUTION: Do not attempt to unplug attachment with machine running.

   • Rotating blades are dangerous. Shut off the engine and remove the key before getting off the seat to inspect the machine and attachment.
   • Thrown objects can cause serious injury. Make sure all machine parts are stopped before raising hopper top or removing chutes.



   Park machine safely. (See Parking Safely in the Safety section.)

2.

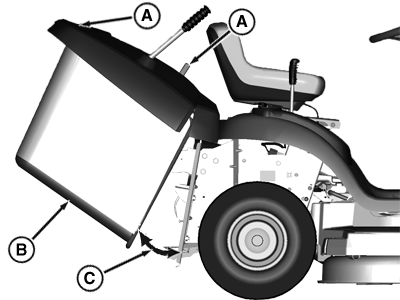

   PY20715-UN-11JUL14

   Open grass collector, and use two handles (A) to raise grass collector (B) at an approximately 20° angle (C). Remove grass collector from support brackets.

---
