Installing Grass Collector

1. CAUTION: Rotating blades are dangerous. Blades may throw debris through raised chute.

   Park machine safely before opening grass collector.

   Park machine safely. (See Parking Safely in the Safety section.)

2.
   PY20727-UN-11JUL14


   PY20730-UN-11JUL14


   PY20731-UN-11JUL14

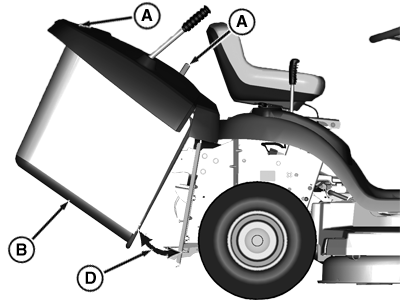

   Use two handles (A) to raise hopper assembly (B) and leave hopper assembly open at an approximate 20° angle (D).

---




3. IMPORTANT: Make sure arrows are aligned before closing hopper assembly. Damage could occur to machine and/or hopper if arrows are not aligned.

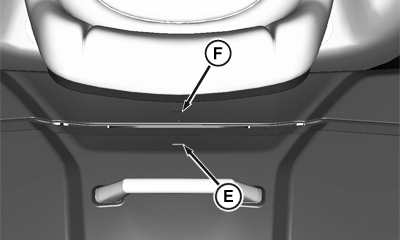

   With hopper still at an approximate 20° angle, inspect that the center arrow (E) on the hopper aligns to the center arrow (F) on the machine. Move hopper, as necessary, to align the arrows.

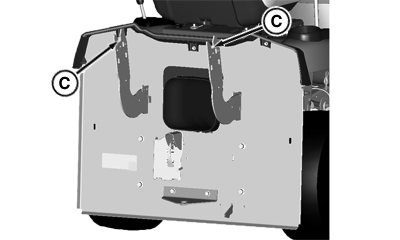

4. Push the hopper forward, causing it to fall into the pivot (C) on the support arms. Check again to be sure arrows align, and then close hopper assembly.
