Connecting Manual PTO Cable

NOTE: For 115R only.

1. Park machine safely. (See Parking Safely in SAFETY section.)

2. Remove right and left deck shields. (See Removing and Installing Machine Shields in the SERVICE MOWER section.)

3.
   PY20739-UN-11JUL14

   Lock out Pin

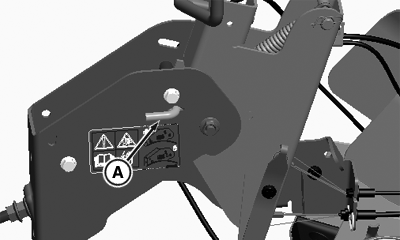

   Insert the lock out pin (A) to PTO handle as shown.

---




4.
   PY20740-UN-11JUL14

   Right Side

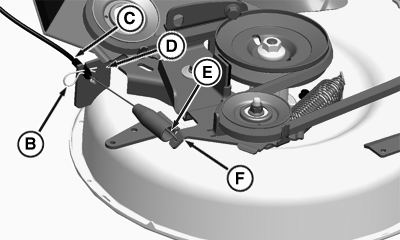

   Assemble the spring (E) to the mower deck bracket (F).

---




5. Insert the cable (C) to the bracket (D) and then insert the Clip (B)

6.
   PY20741-UN-11JUL14

   Left Side

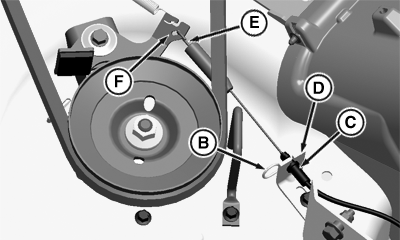

   Repeat the same procedure on other side.

---




7.
   PY20740-UN-11JUL14

   Right Side

   Store pin (A) in a safe location for future use.

---
