Lubricating Front Axle

PY24040-UN-15MAY15

Wheel Spindles and Bushings

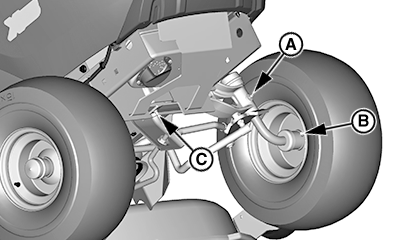

• Lubricate front wheel spindle grease fitting (A) and wheel hub grease fitting (B), one on each side, with one or two shots of general all-purpose grease.

Front Axle Pivot

• Lubricate front axle center pivot grease fitting (C) with one or two shots of general all-purpose grease.
