Lubricating Pivot Points

  1. Put attachment lift lever in lowest position.

  2. Remove right and left deck shields. (See Removing and Installing Machine Shields in the SERVICE MOWER section.)

  3. PY24064
    PY24064-UN-26MAY15

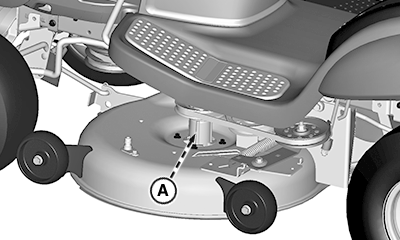

    Use flexible grease gun hose and lubricate left mower spindle grease fitting (A) with two pumps of grease at specified interval. Repeat on right spindle.


  4. Install right and left deck shields.

RM87422,000026D-19-20150611
