Removing and Installing Machine Shields

Remove and Install Machine Shields - X115R & X135R

1. Park machine safely. (See Parking Safely in SAFETY section.)

2. NOTE: Any time shields are removed, clean all debris from the top surface of the mower deck and under all sheaves before shield installation.


   PY21313-UN-05AUG14

   Right Side Shield


   PY21314-UN-05AUG14

   Left Side Shield

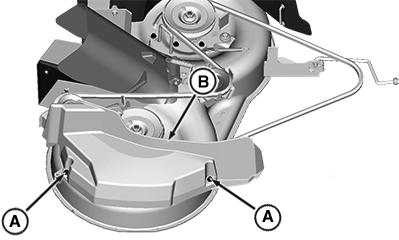

   On right side of machine, remove screws (A), then remove shield (B).

---

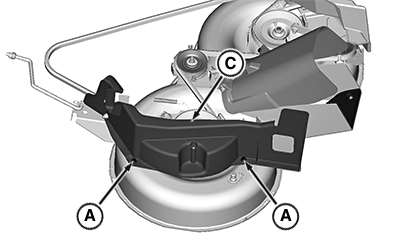

3. On left side of machine, remove screws (A), then remove shield (C).

4. To install, place shields onto machine tabs and secure with screws.

Remove and Install Machine Shields - X155R

1. Park machine safely. (See Parking Safely in SAFETY section.)

2. NOTE: Any time shields are removed, clean all debris from the top surface of the mower deck and under all sheaves before shield installation.


   PY21315-UN-05AUG14

   Left Side Shield


   PY21316-UN-05AUG14

   Right Side Shield

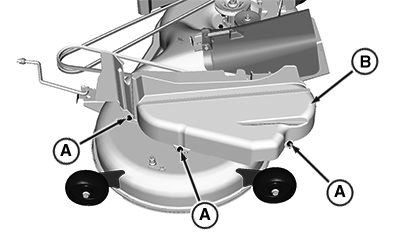

   On left side of machine, remove screws (A), then remove shield (B).

---

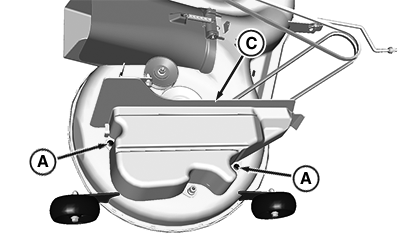

3. On right side of machine, remove screws (A), then remove shield (C).

4. To install, place shields onto machine tabs and secure with screws.

Remove and Install Engine Drive Sheave Shield

PY24067-UN-27MAY15

Left Side Shield

PY24068-UN-27MAY15

Right Side Shield

PY24069-UN-27MAY15

Front Shield

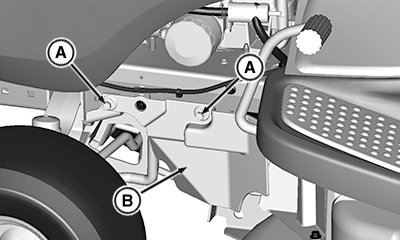

1. Remove the screws (A) and detach left side shield (B).

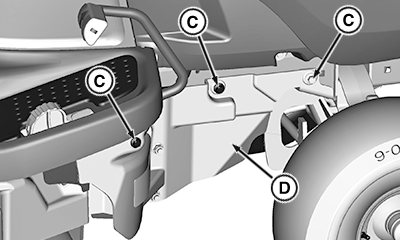

2. Remove the screws (C) and detach right side shield (D).

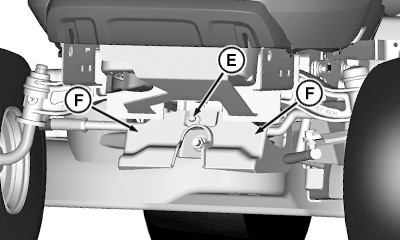

3. Remove the screw (E) and detach frontside shield (F). Take care, do not damage the parts.

4. Check the part for any damage and if necessary replace the required parts.

5. For install, assemble the frontside shield (F) to exact position as shown with screw (E).

6. Install right side shield (D) and tighten the screw (C).

7. Install left side shield (B) and tighten the screw (A). Tighten the screws as per specification.
