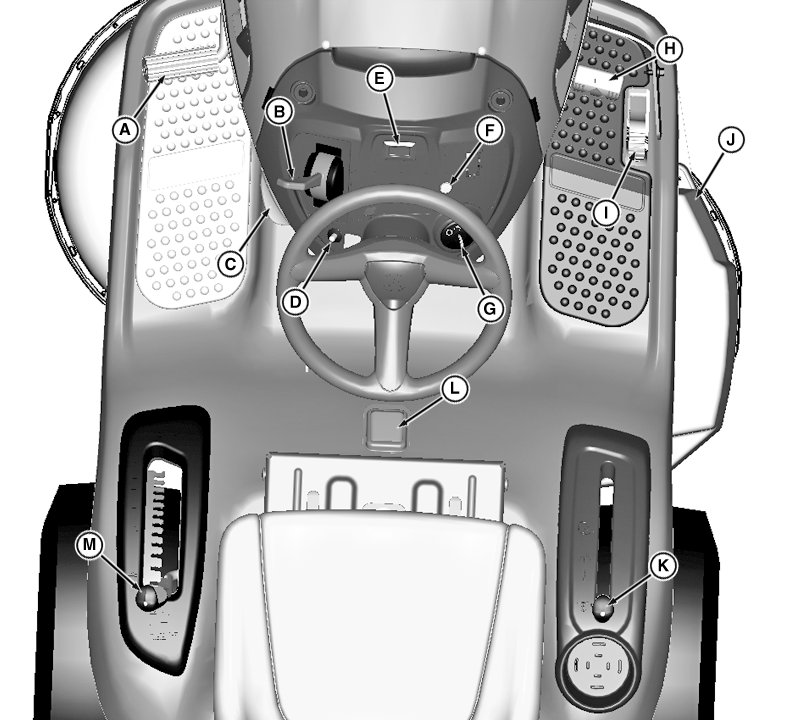

Operator Station Controls X115R

PY20707-UN-28JUL15

A - Brake Pedal

B - Throttle Lever

C - Park Brake Lever

D - Reverse Implement Option (RIO) Switch

E - Service Reminder/Hour Meter

F - Hopper Fill Indicator Light

G - Key Switch

H - Forward Travel Pedal

I - Reverse Travel Pedal

J - Mower Deck Shield

K - PTO Engage Lever

L - Fuel Level Window

M - Attachment Lift Lever
