Adjusting Seat

1. Tip seat forward.

2.

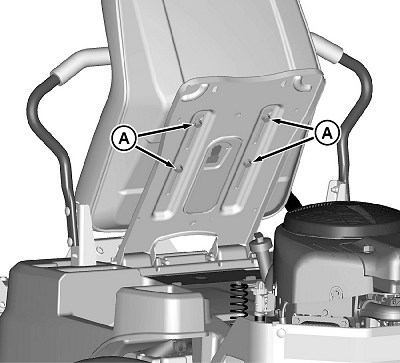

   GXT001454-UN-14MAY15

   Loosen four seat bolts (A) with a 13 mm wrench or the height of cut (HOC) pin.

---




3. Slide seat to desired position and tighten bolts to Specification.

   Item	Measurement	Specification
   Bolts	Torque	20 N·m (15 lb-ft)
