Lubricating Mower Deck Spindles

NOTE: Removal of belt shields is not necessary to lubricate the spindles.

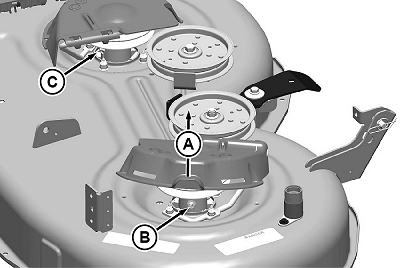

42A Mower Deck

GXT002151-UN-13MAY15

1. Remove deck height lock pin, lower lift handle, then reinstall pin.
2. Flip up spindle cover (A) to access mower deck spindle grease fitting (B).
3. Lubricate grease fitting with two pumps of grease at specified interval.
4. Repeat step 2 and 3 for opposite spindle (C).

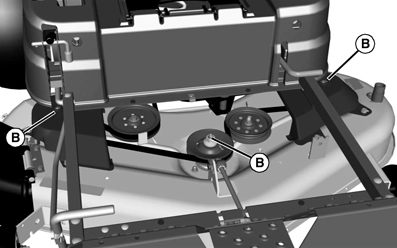

48TD Mower Deck

MXAL42822-UN-09APR13

1. Remove mower deck foot plate.
2. Lubricate three mower deck spindle grease fittings (B) with two pumps of grease at specified interval.
