Removing Mower Deck (48TD)

  1. Park machine safely. (See Parking Safely in the SAFETY section.)

  2. Allow engine and muffler to cool completely.

    CAUTION: Avoid injury! Rotating blades are dangerous.

    Before adjusting or servicing mower:

    • Disconnect spark plug wire(s) or battery negative (-) cable to prevent engine from starting accidentally.
    • Always wear gloves when handling mower blades or working near blades.

  3. Raise mower deck to the transport lock position.

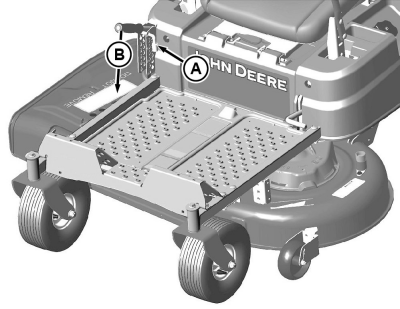

  4. GXT001934
    GXT001934-UN-02JUN15

    Remove lock pin, lower handle (A) to the lowest position and install pin (B) just above lever to lock deck in lowered position.


  5. Remove foot plate.

  6. CAUTION: Avoid injury! Component is spring-assisted and under tension. Injury can occur if spring-assisted component is released suddenly.

    Disconnect mower drive belt:

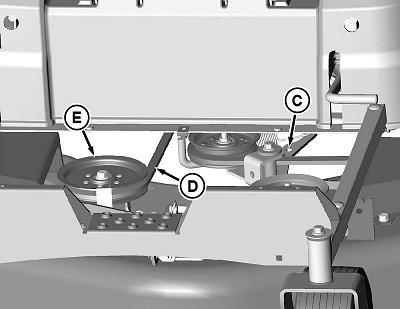

    • GXT001919
      GXT001919-UN-13MAY15

      Install 3/8 inch ratchet onto square hole (C) in tension arm and rotate clockwise to release tension on belt, while removing mower belt (D) from center spindle sheave (E).
    • Remove belt from engine sheave.

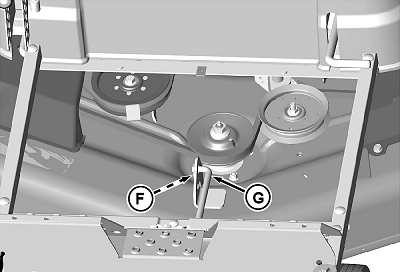

  7. GXT001918
    GXT001918-UN-13MAY15

    Remove locking clip and washer (F) and front lift arm (G) from front deck bracket.

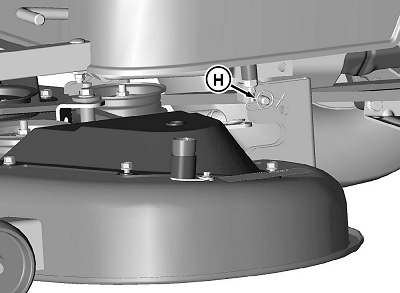

  8. GXT001920
    GXT001920-UN-13MAY15

    Remove spring clip (H) and pin from each side of rear mower bracket.


  9. Raise lift linkage to transport position:

    1. Pull pin and raise mower lift lever fully upward.

    2. Install pin just below lift lever to lock into raised position.

  10. Rotate front caster wheels to maximize clearance.

  11. Slide mower out from under the machine.

    • Do not operate the machine without the mower deck: Machine may become unstable without the mower deck attached. Move machine only by hand. (See Moving Machine by Hand in OPERATING section.)

TH84124,00001C6-19-20150612
