Cleanout Areas

NOTE: Also see machine Service Label.

Primary areas that must be inspected and cleaned on the machine include:

1. Exhaust manifold, muffler pipes, muffler and muffler shield.

2.
   GXT002174-UN-05JUN15

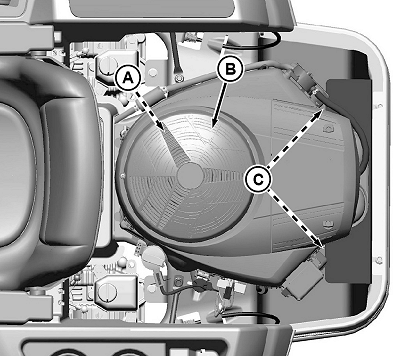

   Engine intake screens, both rotating (A) and fixed (B). Cooling fins (C), and oil cooler (if equipped).

---

3.
   GXT002175-UN-05JUN15

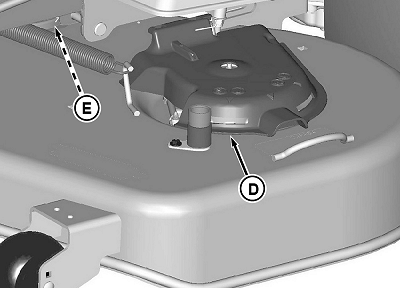

   Top of mower deck, under shields (D), including spindle and belt area (E).

---

4.
   GXT002176-UN-05JUN15

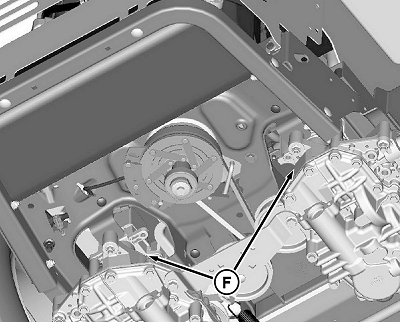

   On or near transaxles (F) and belt drives and fins.

---

5.
   GXT002177-UN-05JUN15

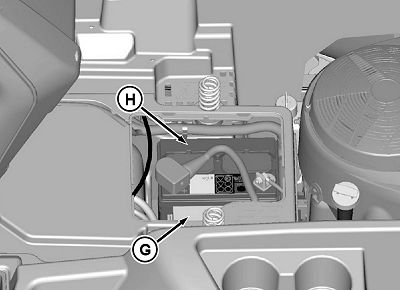

   Under the seat and near fuse block (G), including the battery (H) and wiring harness.

---
