Install Seat

Z535M and Z540M Models

1. NOTE: Z535M and Z540M models are shipped with back of seat in a horizontal position for shipping only. Do not operate machine with seat in this horizontal position.

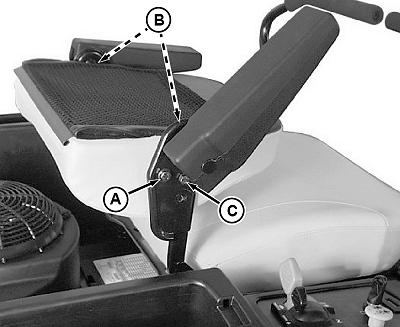

   GXT002404-UN-15JUL15

   Remove rear bolt (A) and discard plastic washer from each side of seat bracket (B).

---




2. Loosen front bolt (C) on each side of seat bracket.

3. Lift seat back to operating position and insert bolts removed earlier into holes (D) on each side of seat.

4. Tighten four bolts to specification.

   Item	Measurement	Specification
   Seat Hardware	Torque	24 N·m (18 lb-ft)

Z535R and Z540R Models

1. NOTE: Z535R and Z540R models are shipped with the seat rotated forward and resting on the front platform for shipping only. Do not operate machine with seat in this rotated position.

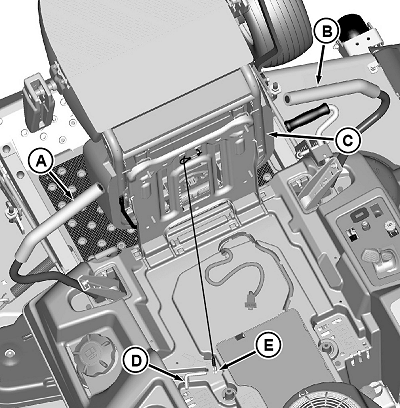

   GXT002178-UN-05JUN15

   Move the left (A) and right (B) motion levers toward the outside of the machine.

---




2. Rotate the seat until the seat bottom (C) is in a vertical position.

3. Lift the L-pin handle (D) up and slide it toward the outside of the machine. Insert the free end of the seat tether into the opening slot (E) of the machine cover.

4. Push the L-pin through the tether loop and push the L-pin handle down into the snap-lock groove in the cover.
