Moving Machine by Hand

CAUTION: Avoid injury! When the bypass valve is open, the machine will have unrestricted motion.

• Do not open the bypass valve when the machine is stopped on an incline to prevent it from going downhill out of control.

IMPORTANT: Transmission damage may occur if the machine is towed or moved incorrectly:

• Move machine by hand only.

• Do not use another vehicle to move machine.

• Do not tow machine.

When the machine needs to be moved without starting the engine, use the bypass valves:

NOTE: Do not operate bypass control levers while machine is running. Do not operate the machine with controls in bypass position.

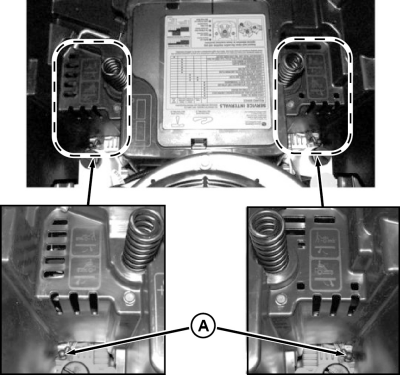

  1. GXT002403
    GXT002403-UN-30JUL15

    Rotate levers (A) inward until lever hits a stop.


  2. Release park brake.

  3. Push machine to desired location and lock park brake.

  4. Rotate bypass levers (A) outward to the disengaged position.
