Transporting Machine on Trailer

NOTE: Trailer capacity must exceed combined machine weight and attachment weight. (See Specifications section in operator’s manual).

Be sure that trailer has all the necessary lights and signs required by law.

CAUTION: Avoid injury! Use extra care when loading or unloading the machine onto a trailer or truck. Machine wheels can go off the ramp or trailer, causing the machine to tip over.

• To load, back slowly and in a straight line. Keep wheels away from drop-offs and edges.

• Do not use two separate loading ramps. Use a full width loading ramp at least 30 cm (12 in.) wider than machine to keep caster wheels from going off the ramp edge.

• Use a trailer with sides.

  1. Park trailer on level surface.

  2. Raise mower deck before driving machine onto trailer.

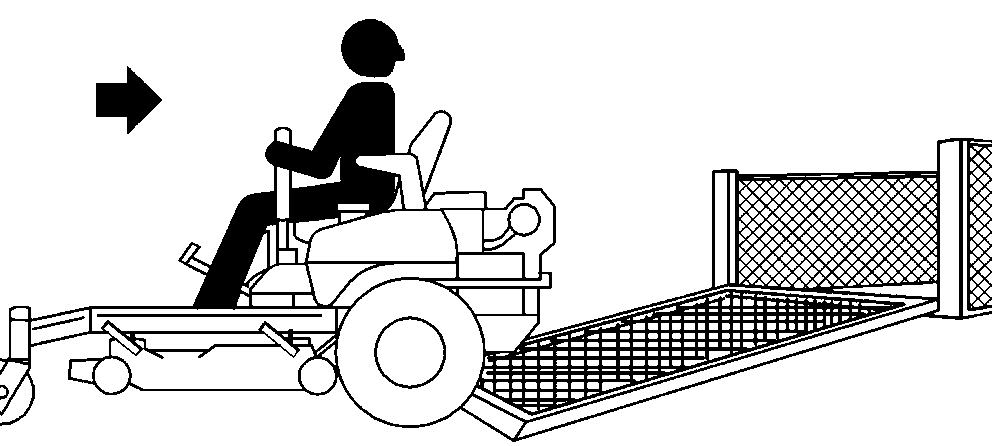

  3. MXAL42817
    MXAL42817-UN-09APR13

    Back machine onto heavy-duty trailer with full-width ramp.


  4. Lower mower deck completely.

  5. Lock park brake.

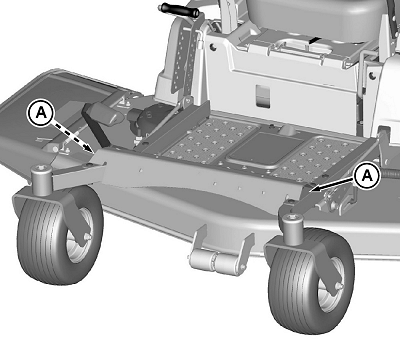

  6. GXT002198
    GXT002198-UN-08JUN15

    Fasten front of machine at both sides of the frame at points (A) to trailer with heavy-duty straps, chains, or cables. Straps must be directed forward, down and outward from machine.


  7. Turn off machine and remove key.

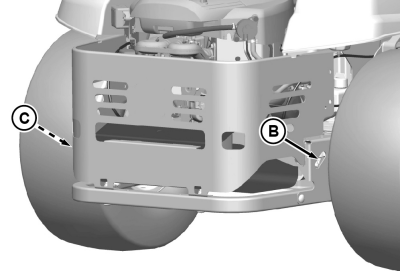

  8. GXT002405
    GXT002405-UN-16JUL15

    Fasten rear of machine at slots on each side of frame (B - right, C - left) to trailer with heavy-duty straps, chains, or cables. Straps must be directed rearward, down and outward from machine.

TH84124,00001EB-19-20150716
