Lubricating Mower Deck Spindles

NOTE: Removal of belt shields is not necessary to lubricate the spindles.

  1. Remove mower deck foot plate.

  2. Lubricate each mower deck spindle with two pumps of grease at specified intervals as indicated:


48A and 54A Mower Decks

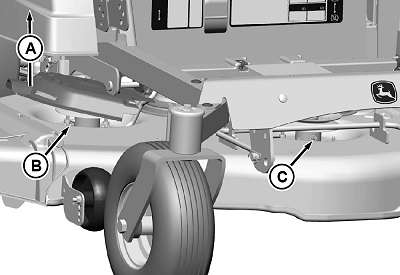

  • GXT002200
    GXT002200-UN-08JUN15

    Raise spindle cover (A) and lubricate spindle grease fitting (B).

  • Raise opposite spindle cover and lubricate spindle grease fitting.
  • Lubricate center spindle grease fitting (C).

48HC, 54HC, 60HC and 62C Mower Deck

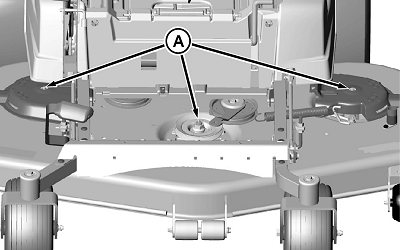

  • GXT002201
    GXT002201-UN-08JUN15

    Lubricate three spindle grease fittings (A). NOTE: For 48HC, it may be necessary to raise deck to transport height to rotate idler arm for grease access to center spindle.

TH84124,00001EC-19-20150716
