Lubricating Front Lift Arm

GXT002202
GXT002202-UN-08JUN15

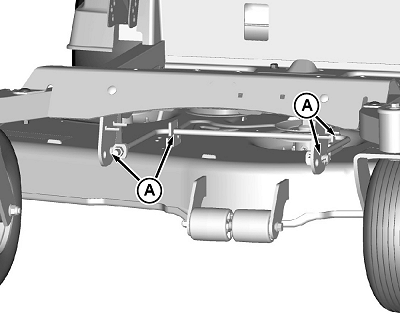

48A deck shown.

Lubricate the front lift arm at the points (A) where it pivots in the mower deck bracket as needed to prevent or minimize squeaking during operation.
