Checking and Adjusting Neutral Creep

Check neutral creep with engine running, motion control levers in the start/shutdown position, park brake off, and machine on level ground.

If the machine creeps forward or reverse while motion control levers are in the start/shutdown position, adjust the motion control lever linkages:

  1. Park machine safely. (See Parking Safely in the SAFETY section.)

  2. Remove style panel for better access to adjustment components (if desired). (See Removing and Installing Style Cover in the SERVICE MISCELLANEOUS section.):

  3. GXT002408
    GXT002408-UN-30JUL15

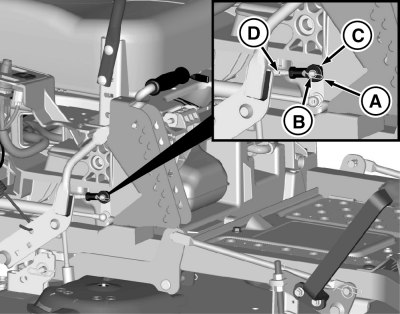

    Right side of machine shown with machine parts removed for a clearer image.

    On linkage side needing adjustment (right side shown), remove spring locking clip (A) and rod end (B) from pivot pin (C). Turn rod end (B) on rod (D) in (clockwise) to decrease forward creep and out (counterclockwise) to decrease reverse creep. Repeat procedure, as necessary, on opposite side. Install rod ends back onto arms and secure with spring locking clips.

TH84124,00001FC-19-20150730
