Removing and Installing Style Cover

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2.

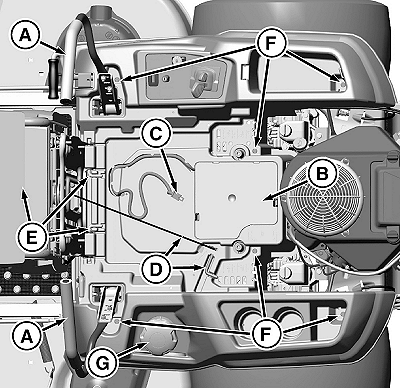

   GXT002438-UN-15JUL15

   Remove two bolts and motion control lever (A) from either side of machine.

---




3. Raise seat and rotate forward. Remove battery cover (B).

4. Disconnect seat switch wiring harness connector (C). Lift switch harness from channel in cover, and place in battery compartment.

5. Remove pin and seat lanyard (D) from cover. Remove two L-pins and seat (E).

6. Remove three push retainers (F) on each side of style panel.

7. Remove fuel tank cap (G) and cover tank opening.

8. Lift style panel to remove from machine and immediately install cap (G) on fuel tank.

9. Repeat steps in reverse order to install style panel on machine.
