Moving Machine by Hand

CAUTION: When the bypass valve is open, the machine will have unrestricted motion.

• Do not open the bypass valve when the machine is stopped on an incline to prevent it from going downhill out of control.

IMPORTANT: Transmission damage may occur if the machine is towed or moved incorrectly:

• Move machine by hand only.
• Do not use another vehicle to move machine.
• Do not tow machine.

When the machine needs to be moved without starting the engine, use the bypass valves:

1.

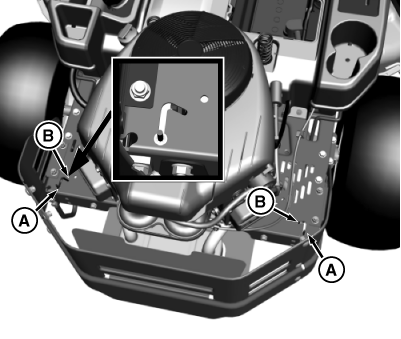

   MXT005332-UN-13JUN13

   Push bypass control rods (A) forward and into detent slot (B) to engage bypass valve.

---




2. Release park brake.

3. Push machine to desired location and lock park brake.

4. NOTE: The bypass control rods should be disengaged before starting and operating the machine.

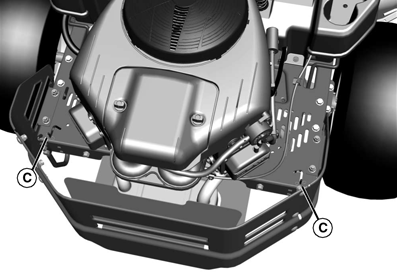

   MXAL42815-UN-09APR13

   Move both bypass control rods from their detent slot and push the rods back to the disengaged position (C).

---
