Cleaning Engine Screen Guard

The twin cylinder engine incorporates a removable guard over the rotating flywheel cover at the top of the engine. The guard should be removed to check for and remove any debris daily in conjunction with checking engine oil level.

MXAL42838
MXAL42838-UN-09APR13

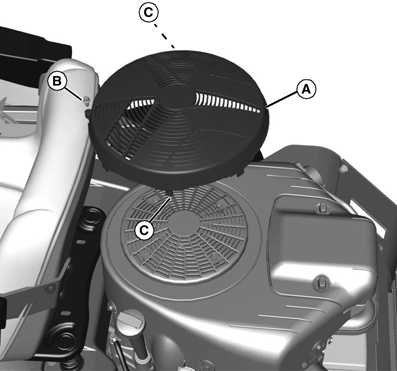

  1. Locate rotating screen guard (A) at top of engine.

  2. Remove screw (B) (if equipped), press in tabs (C) and lift off guard (A).

  3. Clean guard and flywheel cover of debris.

  4. Install guard after cleaning.
