Cleanout Areas

Primary areas that must be inspected and cleaned on the machine include (See machine Service Label):

1.

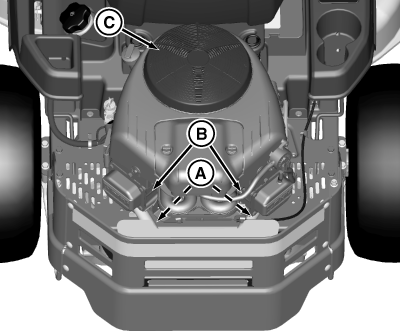

   GXT002892-UN-29MAR16

   Muffler components (A):
   • Exhaust Manifold
   • Muffler Pipes
   • Muffler
   • Muffler Shield

---

2. Engine cooling fins (B) and intake screens (C).

3.

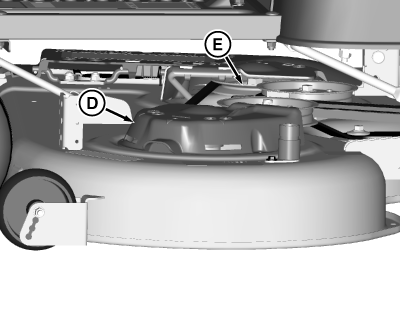

   GXT002893-UN-25MAR16

   Top of mower deck, under shields (D), including spindle and belt area (E).

---

4.

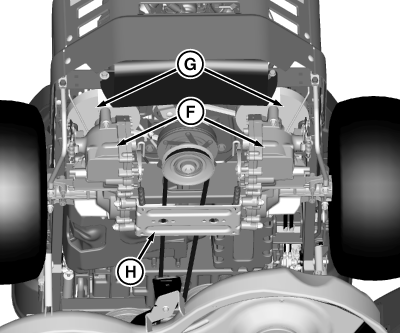

   GXT002894-UN-25MAR16

   On or near transaxles (F), belt drives, and fins (G) and cross-strap bracket (H).

---

5.

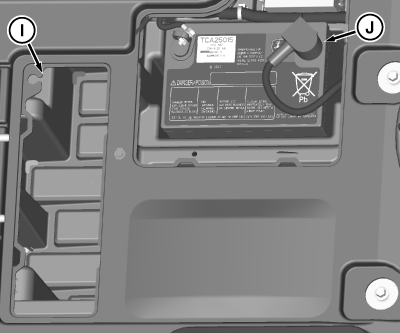

   GXT002895-UN-25MAR16

   Under the seat, including the storage compartment (I), battery (J) and wiring harness.

---
