Adjusting Seat


Fixed Seat

  1. Tip seat forward.

  2. GXT001454
    GXT001454-UN-14MAY15

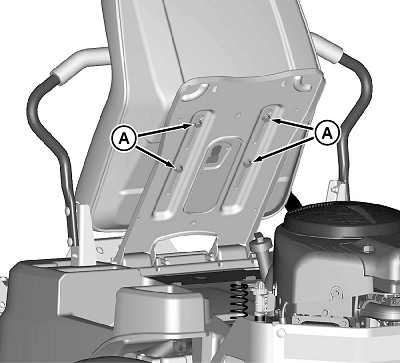

    Loosen four seat bolts (A) with a 13 mm wrench or the height of cut (HOC) pin.


  3. Slide seat to desired position and tighten bolts to Specification.

    ItemMeasurementSpecification
    BoltsTorque20 N·m (15 lb·ft)


Adjustable Seat

  1. Sit on operator seat.

  2. GXT002896
    GXT002896-UN-28MAR16

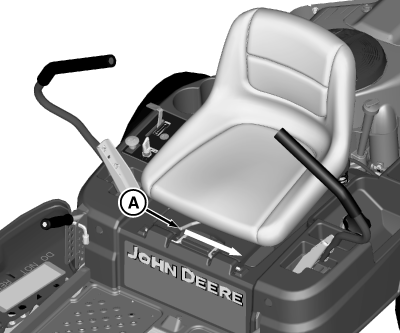

    Push and hold the seat adjustment lever (A) toward the middle of the seat.


  3. Slide seat forward or backward to desired position

  4. Release lever
