Lubricating Mower Deck Spindles

NOTE: Removal of belt shields is not necessary to lubricate the spindles.

1. Remove mower deck foot plate.

2. Lubricate each mower deck spindle with two pumps of grease at specified intervals as indicated:

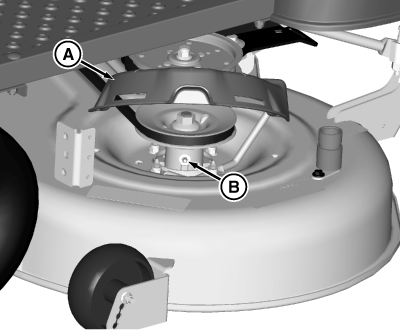

42A Mower Deck

GXT002900-UN-28MAR16

• Raise spindle cover (A) and lubricate spindle grease fitting (B).
• Raise opposite spindle cover and lubricate spindle grease fitting.

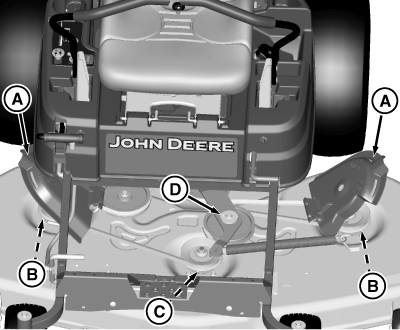

48A and 54A Mower Decks

GXT002899-UN-28MAR16

• Raise spindle covers (A) and lubricate spindle grease fittings (B).
• Lubricate center spindle grease fitting (C) from front of mower deck.
• Lubricate idler arm grease fitting (D).
