Checking and Cleaning Air Cleaner Element

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Let engine cool.

3. IMPORTANT: To prevent engine damage, do not allow any foreign objects to fall into the carburetor air intake.

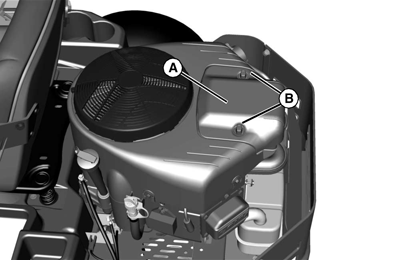

   MXAL42833-UN-09APR13

   Clean dirt and debris from the air cleaner cover (A).

---




4. Loosen two knobs (B) and remove cover.

5. IMPORTANT: Dirt and debris can enter the engine through a damaged filter element:

   • Do not wash paper element.
   • Do not attempt to clean paper element by tapping against another object.
   • Do not use pressurized air to clean element.
   • Replace element only if it is very dirty, damaged or the seal is cracked.



   NOTE: During filter cartridge removal, any material or foreign object that enters the air intake must be removed before replacement of the cartridge.

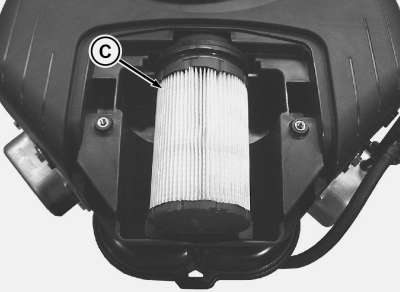

   MXT010728-UN-21APR14

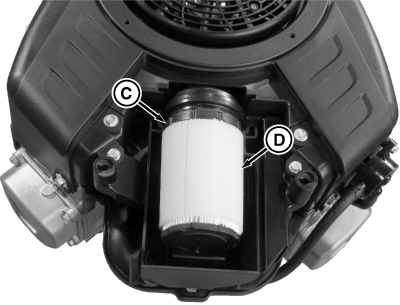

   GXT002964-UN-18APR16

   Lift out filter cartridge (C) and inspect it for damage.

---




6. NOTE: Do not put engine oil on precleaner. Engine oil may wick into the paper filter element and result in poor engine performance.

   • Rinse precleaner thoroughly. Squeeze out excess water in a dry cloth until precleaner is completely dry.

   • Replace the precleaner if damaged or missing.

   If equipped, carefully clean and inspect foam precleaner (D).

   • Wash precleaner in a solution of warm water and liquid detergent.



7. Clean air cleaner housing carefully. Prevent any dirt from falling into carburetor.

8. Install cartridge. Make sure cartridge and seal are properly seated and sealing the carburetor air intake area.

9. Install air cleaner cover and tighten knobs. Do not overtighten.
