Lubricating Front Lift Arm

GXT002152-UN-02JUN15

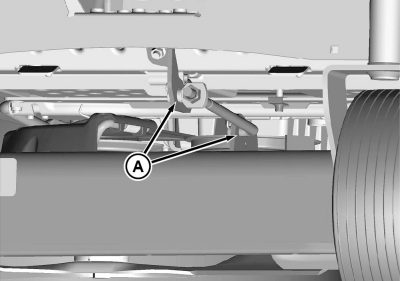

Model Z335E (42A) shown.

Lubricate the front lift arm at the points (A) where it pivots in the mower deck bracket as needed to prevent or minimize squeaking during operation.
