Cleaning Spark Arrestor

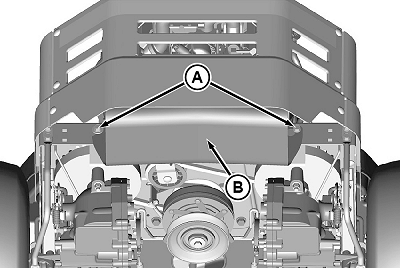

GXT001932
GXT001932-UN-13MAY15

  1. Loosen two bolts (A) and remove muffler shield (B).

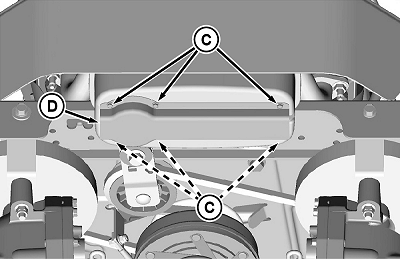

  2. GXT001933
    GXT001933-UN-13MAY15

    Remove screws (C), spark arrestor cover (D) and spark arrestor from engine.


  3. Inspect, clean, or if necessary, replace the screen if damaged.

  4. Install spark arrestor and cover on muffler and secure with original screws.

  5. Install muffler shield and tighten hardware.

    NOTE: If muffler sustains damage during the removal or installation process, replace muffler.

TH84124,00001AA-19-20160606
