Installing Mower Deck (42A)

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Allow engine and muffler to cool completely

3. CAUTION: Avoid injury! Rotating blades are dangerous.

   Before adjusting or servicing mower:

   • Disconnect spark plug wire(s) or battery negative (-) cable to prevent engine from starting accidentally.
   • Always wear gloves when handling mower blades or working near blades.



   Raise mower lift lever fully upward into transport lock position.

4. Remove belt from mower right hand spindle sheave to allow more slack for installation of belt onto clutch.

5. Slide mower deck under machine.

6.

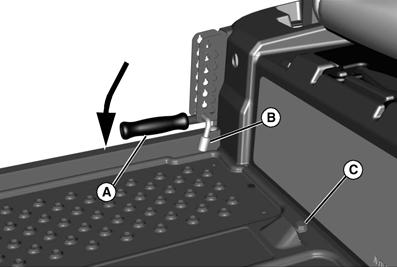

   MXAL42854-UN-09APR13

   Remove lock pin, push handle (A) to its lowest position and install pin (B) just above lever to lock deck in lowered position.

---




7. Remove bolt (C) to remove foot plate.

8.

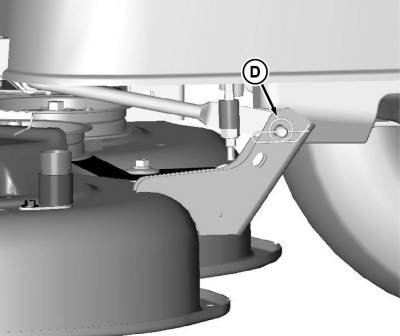

   GXT001925-UN-17JUL15

   Install pin and spring clip (D) onto each side of rear mower bracket.

---




9.

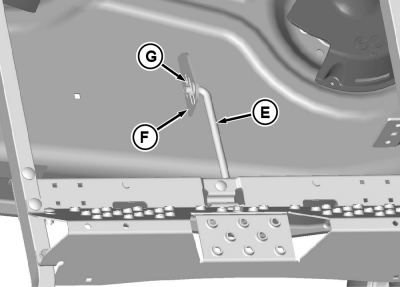

   GXT001926-UN-17JUL15

   Install front lift arm (E) onto front deck bracket (G) and secure with washer and locking clip (F).

---




10. CAUTION: Avoid injury! Component is spring-assisted and under tension. Injury can occur if spring-assisted component is released suddenly.

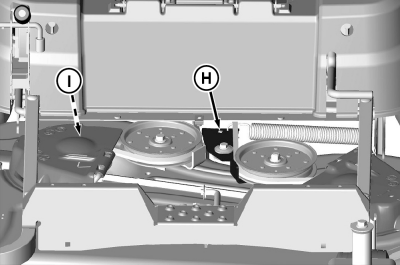

    GXT001927-UN-15MAY15

    Connect mower drive belt:
    • Install belt onto engine sheave.

    • IMPORTANT: Left and right spindle sheaves are hidden by belt shields. Failure to seat belt properly on sheaves may result in belt damage.

      Install 3/8 in. ratchet onto square hole (H) in tension arm and rotate counterclockwise to release tension on belt. Lift right spindle cover and install belt onto right spindle sheave (I). Make sure belt is properly seated on all sheaves.



---




11. Flip up left and right spindle covers to verify belt is properly seated in both spindle sheaves.

12. Install foot plate.
