Using Wash Port to Clean Mower Deck

NOTE: Follow this procedure after each use to prevent buildup and remove corrosive lawn chemicals.

  1. Park machine safely. (See Parking Safely in the Safety section).

  2. GXT002324
    GXT002324-UN-06JUL15

    Attach quick-coupler to garden hose.

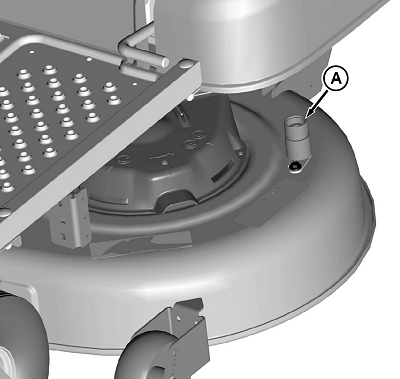

  3. Attach garden hose with quick-coupler to wash port (A) on the mower deck.

  4. Turn on water.

  5. Start engine.

  6. Run at full throttle.

  7. Engage mower blades.

  8. Flush water under deck for approximately one minute.

  9. Disengage mower blades.

  10. Stop engine.

  11. Turn off water and remove garden hose and quick-coupler from wash port.

  12. Remove quick-coupler from garden hose and store for future use.

TH84124,000024E-19-20150706
