Opening Inner Gatherer Sheets

Raise row-crop head to maximum height and lower hydraulic cylinder safety stop.

Shut off engine, set parking brake and remove key.

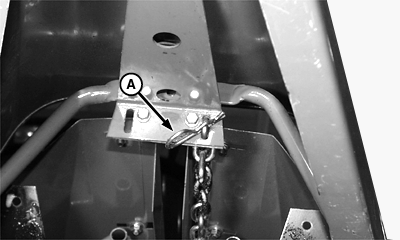

Pull spring locking pin (A) attaching chain to point and lower point to ground. Store pin in same chain link to prevent loss and to retain adjustment location.

A-Spring Locking Pin

AG,OUO1035,2041 -19-24MAR00-1/2

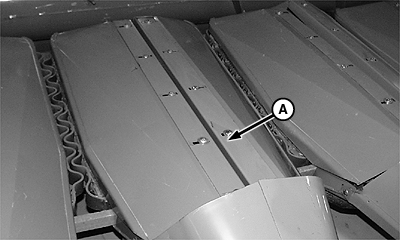

To open, pull up on inner gatherer sheets (A).

To close, push down on sheet until you hear it snap.

A-Gatherer Sheets

AG,OUO1035,2041 -19-24MAR00-2/2
