Adjusting Inner Gatherer Points Up or Down

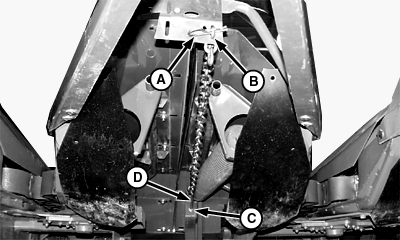

Raise row-crop head to maximum height and lower hydraulic cylinder safety stop.

Remove spring locking pin (A).

Position desired link of chain in slot (B).

Insert spring locking pin.

If further adjustment is required to level gatherer points adjust as follows:

Loosen nut (C).

Turn adjusting bolt (D) until desired height is obtained.

Tighten nut.

A-Pin
B-Slot
C-Nut
D-Adjusting Bolt

AG,OUO1035,2042 -19-24MAR00-1/1
